| Amp |
Pris |
Tap
Watt |
Type (Tegningsnr) |
Kjoleflens type
Halvleder type |
Max
dimmensjoner |
Beskrivelse |
Filtype |
|
| |
|
|
BF Type

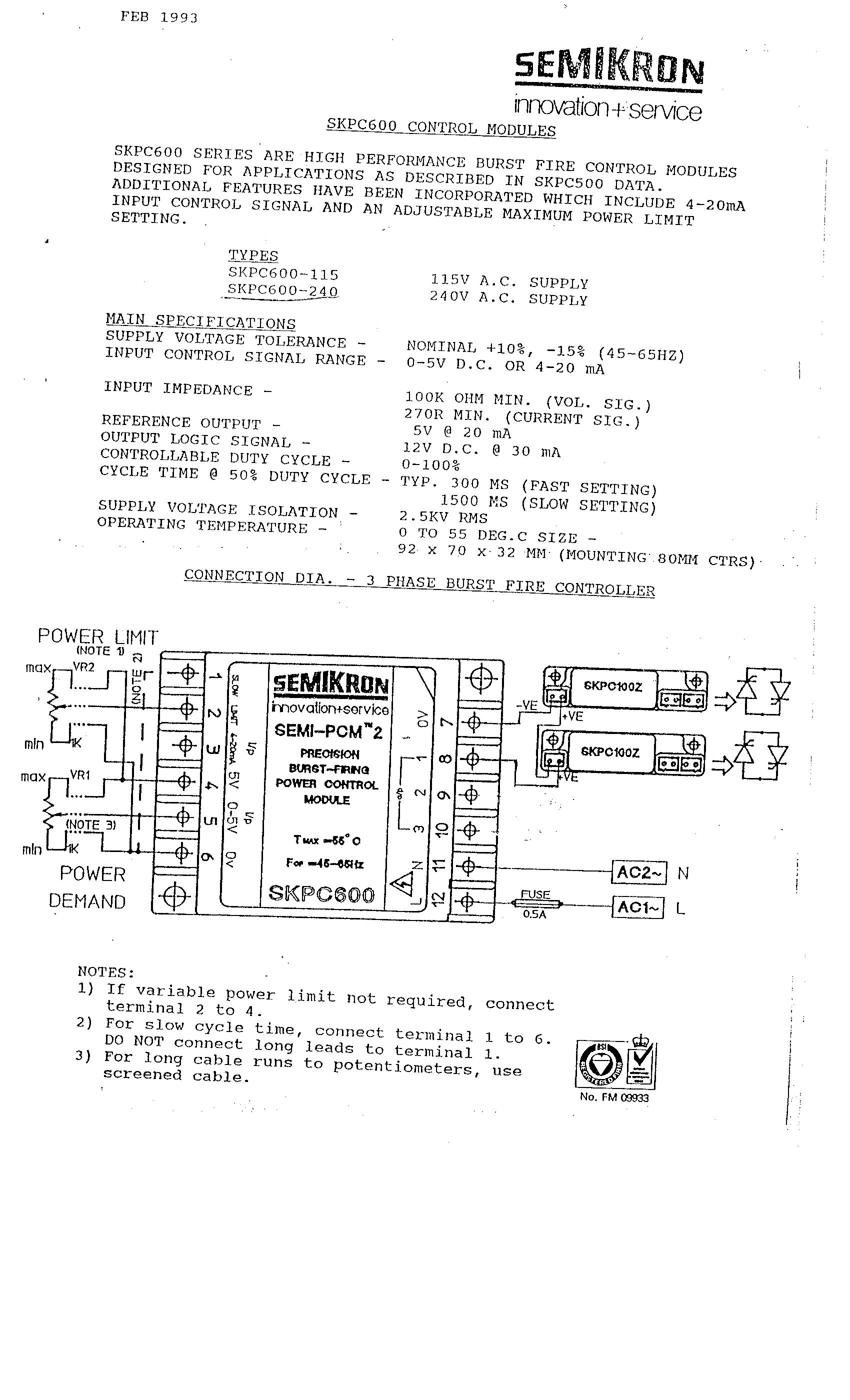

SKPC600-240V
( SKPC600-240 ) |
|
|
Varenr. 16-32 |
jpg |
525 kB |
| |
|
|
EMC Protection
3 x 0,47uF 320V ac |
11-pin plug-
kapsel m/sokkel |
B=38
H=75
D=100 |
Varenr. 12-38 |
|
0 bytes |
| |
|
|
EMC Protection
3 x 0,5uF 500V ac |
11-pin plug-
kapsel m/sokkel |
B=38
H=75
D=100 |
Varenr. 12-36 |
|
0 bytes |
| |
|
|
Internal Wiring-diagram for all our 250-500V TRIAC
(W96-0318-1) |
|
|
Wiring connections OPT500 |
PDF |
18 kB |
| 15 |
|
40 |
W 2C 500V15A +OPT+BF
(W 14Z50-15) |
Al-U-180
PSU T36/14 |
B=155
H=180
D=135 |
Varenr. 14-235
AMP tilk. |
pdf |
364 kB |
| 25 |
|
60 |
W 2C 500V25A +OPT+BF
(W 14Z50-25) |
Al-U 300
PSK T26/16io1 |
B=155
H=300
D=135 |
Varenr. 14-236
M5 tilk. |
pdf |
58 kB |
| 38 |
|
80 |
W 2C 500V38A +OPT+BF
(W 14Z50-38) |
P14/300
PSK T26/16io1 |
B=155
H=300
D=155 |
Varenr. 14-237
M5 tilk. |
pdf |
57 kB |
| 60 |
|
140 |
W 2C 500V60A +OPT+BF
(W 14Z50-80) |
1xP3/200
PSK T95/16io1 |
B=198
H=200
D=225 max |
Varenr. 14-238
M5 tilk. |
pdf |
54 kB |
| 80 |
|
170 |
W 2C 500V80A +OPT+BF
(W 14Z50-80) |
1xP3/200
PSK T132/16io1 |
B=198
H=200
D=225 max |
Varenr. 14-239
M6 tilk. |
pdf |
54 kB |
| 200 |
|
450 |
W 2C 500V200A F+OPT+BF
(W 14Z50-200) |
1xP3/200F
PSK T162/16io1 |
B=200
H=250
D=225 max |
Varenr. 14-243
M6 tilk. |
pdf |
55 kB |
| 400 |
|
900 |
W 2C 500V400A F+OPT+BF
(W 14Z50-400) |
2xP3/300F
PSK T225/16io1 |
B=320
H=250
D=220 |
Varenr. 14-247
M8 tilk. |
pdf |
49 kB |
